High Speed stranding Machine for sale
Inlet wire diameter(mm):Φ0.18mm-Φ0.62mm
Twisting section(mm2):0.18-6
Twisting interval(mm):34(11.6mm-66.1mm)
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
▼ Product Introduction

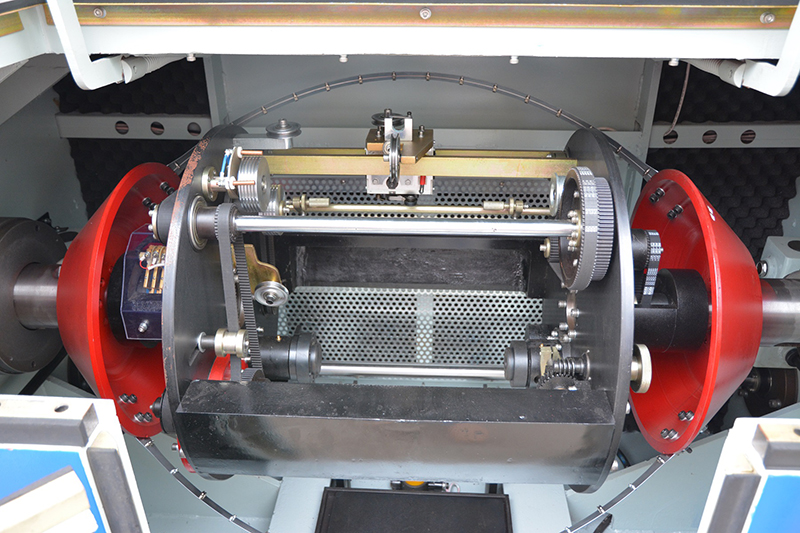

LISTRONG-400P/500P copper wire bunching machine
It has been developed to produce accurate strands with small sections for the electronic industry. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Application: The copper wire bunching machine is used for bunching aerospace, medical equipment, cellphone and ultra-conductor (above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Copper wire bunching machine technical parameters
|
Machine type |
400P |
500P |
|
Max. rotating speed |
3000RPM |
3000RPM |
|
Inlet wire dia. (MM) |
Φ0.08-Φ0.35 |
Φ0.08-Φ0.45 |
|
Twisting section (MM2) |
0.035-1.5 |
0.035-2.0 |
|
Twisting interval (MM) |
40 sections（3.7mm-30.6mm） |
40sections（6.3mm-50.4mm） |
|
Direction of twist |
S or Z adjustable |
|
|
Take-up spool (MM) |
Φ400*L300/max |
Φ500*L320/max |
|
Reel top (MM) |
Φ50-Φ127 to be supplier as per spool size |
|
|
Smooth rod rewinder (MM) |
Φ20 |
Φ20 |
|
Main shaft center |
685mm |
700mm |
|
Main shaft lubrication |
Thin oil lubrication |
|
|
Main motor power |
5.5 KW |
5.5 KW |
|
Machine dimension(MM) |
2620*1260*1180 |
2770*1280*1200 |
▼ FAQ
Q： Are you a factory or trading company?
A：Our company is a manufacturer located in Suzhou, China, specializing in all kinds of wire and cable making machines, including copper rod breakdown drawing machine, fine wire drawing machine, annealing machine, and bunching machine etc. We will provide not only quality products but also the best service to the customers at home and abroad.
Q： What payment term do you accept?
A：Usually two options: T/T and L/C.
T/T: 30% upon confirming order as down payment, 70% before delivery.
L/C: 100% sight L/C.
